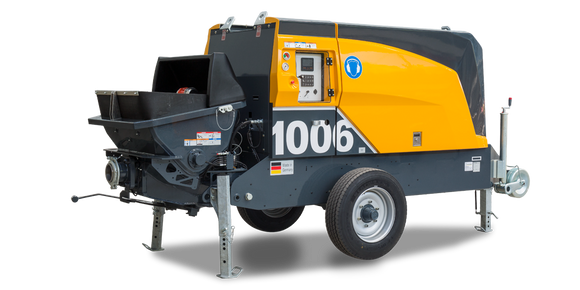

Thom Katt Trailer Pump Tk 1006 D4F
SKU:
- Updated and reinforced frame
- Noise Reduction Design
Galvanized brackets, hood components, and frame parts to improve corrosion protection
The Putzmeister Thomkatt TK 1006 E is the compact concrete pump in the 1000 series, equipped with an environmentally friendly electric motor and the latest Ergonic ® 3 PS control. With an Output of up to 73 yd³/h (56 m³/h) and a max. delivery pressure of 1230 psi (85 bar) it is the big brother to the TK 1004
Additional Specs:
- Output 43 yd³/hr
-
Delivery Pressure1160 psi
-
Max. Aggregate Size1.25 “
- Strokes 32
- Engine Deutz TCD2.2
- Engine Power 74 hp
- Material Cylinder Diameter-Stroke Length 6″/39″
- Hopper capacity: approx. 10.6 ft³
- Outlet Diameter: 5 “
- Length x Width x Height: 189″x68″x86.6
- Weight 6393 lbs
- Trailer Type: Single/Tandem
