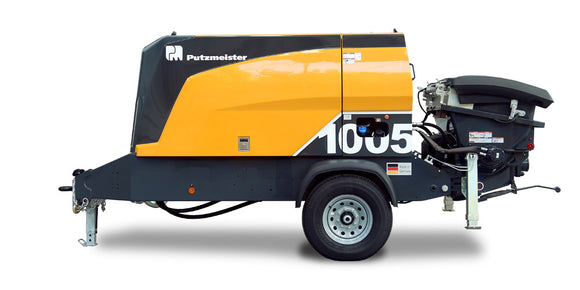

Thom Katt Trailer Pump Tk 1005 H D4F

Contact for Quote

Pricing Subject to Change - Call for details.

In stock!
Contact to Order
Call (530) 488-65491
Fulfillment is approximately 2 weeks after the pre-order is placed

Requesting quote for

Thom Katt Trailer Pump Tk 1005 H D4F

SKU:

  • Fuel-economic automatic speed drawdown on pump stop
  • High-quality wear resistant components for service-life
  • Clear operating data and engine status indication via the display

The Putzmeister TK 1005 H D4F has plenty of power with a 127 hp (95 kW) Caterpillar CAT 3.6 diesel engine and a maximum output of 65 yd³/hr (50 m³/hr). With this, you can push low slump shotcrete mixes long distances with little loss of volume.

Additional Specs:

  • Output 43 yd³/hr
  • Delivery Pressure
    1160 psi
  • Max. Aggregate Size
    1.25 “
  • Strokes 32
  • Engine Deutz TCD2.2
  • Engine Power 74 hp
  • Material Cylinder Diameter-Stroke Length 6″/39″
  • Hopper capacity
    approx. 10.6 ft³
  • Outlet Diameter 5 “
  • Length x Width x Height 189″x68″x86.6
  • Weight 6393 lbs
  • Trailer Type
    Single/Tandem
